High Speed HDPE Extruder Plant

HPMC HDPE pipe plant is state-of-the-art extrusion machinery as to produce an extensive range of HDPE pipes and other utility products from HDPE (High-density polyethylene) to be used and employed in a variety of product utilities in various industries for innumerable purposes. Our High-Speed HDPE Pipe plant available in model numbers HPMC 45G, HPMC 65G, HHPMC 75G and HPMC 90G made from high-grade steel produces very effective pipes in min PIPE OD (mm) and max PIPE OD (mm). The plasticized capacity of the HPMC-High Speed HDPE Pipe Plant ranges between 550 kg/hr to 600 kg/hr.

Ask For Price

Product Description:

Our range of High Speed HDPE Pipe Plant range available in model numbers such as HPMC 45G, HPMC 65G, HPMC 75G, and HPMC 90G is very effective in producing array and range of HDPE products in varying utilities and according to usages across industry sectors and segments.

Get an Instant Quote

Salient Features of High-Speed HDPE Pipe Plant :

It is designed for easy operability and performance optimization.
Screw & Barrel, PLC control system and Spiral Type Die Head and other parts of the High Speed HDPE pipe plant are designed in manner to bring optimum result and ensure better productivity results.
Made to ensure durability and longer life
Energy efficient ensuring lower power consumption
Corrosion resistance

Sections Of The High-Speed Hdpe Pipe Plant:

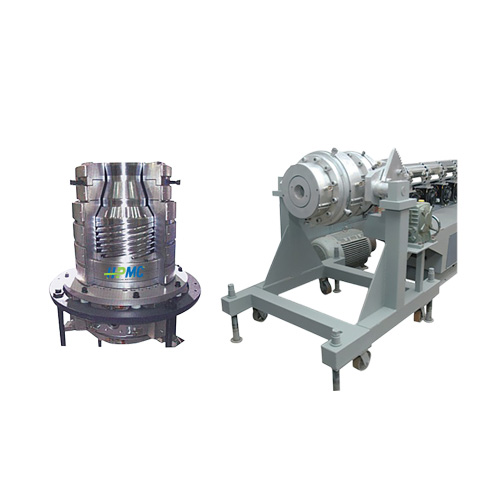

1. Spiral Type Die Head

Spiral type die head ensures stable wall thickness of PE pipe even at higher output.
It can produce pipe upto630mm
Low-pressure diagonal channel with spiral mixing part ensures extrusion at low temperature and homogeneous plasticization.

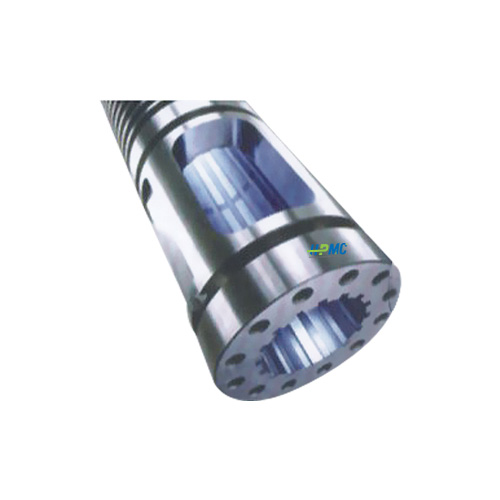

2. Screw And Barrel

The screw adopts a barrier-type mixing zone.
The barrel feeding zone is a groove feed bush and made of hard alloy.
It is result in higher output rates, homogeneous plasticizing, and material slippage

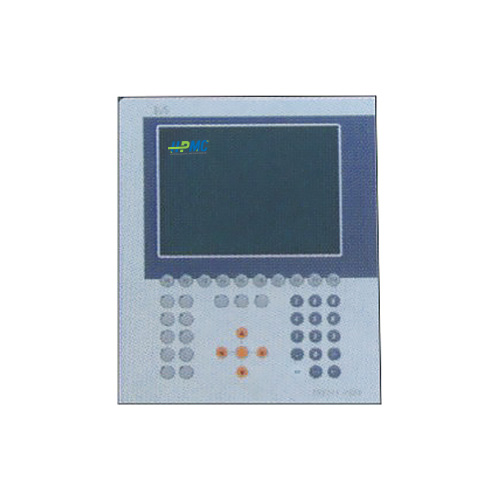

3. PLC Control System

There is an option for the whole line with a PLC control system and large liquid crystal screen which makes the operation very convenient.

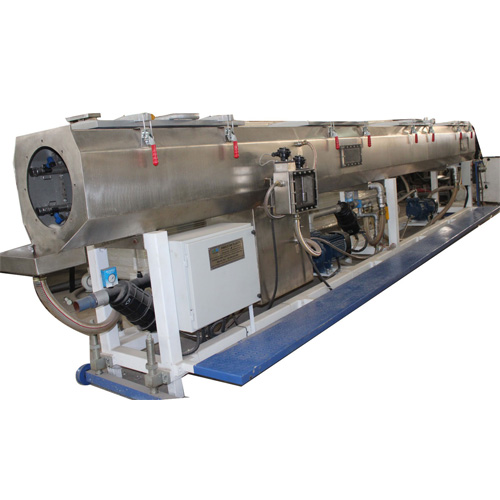

4. Vacuum Tank

Special design vacuum sizing can ensure the stability of diameter and roundness even when producing the pipe with higher wall thickness.
The water spray unit produces a high-speed spray vortex to achieve a fine and even cooling effect.

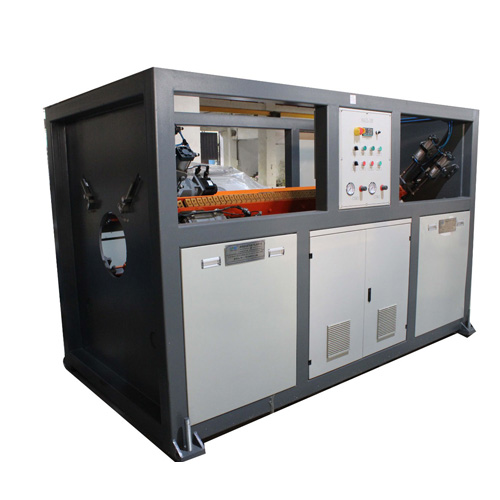

5. Multiple Arm Haul Off

We provide multiple arm haul off which is used for PVC pipes. It has multiple arms maximum up to six for diameter of 630 mm. The multiple arm haul off provides perfect roundness of higher diameter pipes. Developed using high grade steel, our gamut meets the requirements of clients.

Features:

Optimum performance
Durable
Corrosion resistance
Low power consumption
Easy operation

6. Planetary Cutting Saw

The screw adopt barrier type mixing zone.
The barrel feeding zone is groove feed bush and made of hard alloy.
It is result higher output rates,homogeneous plasticizing and material slippage

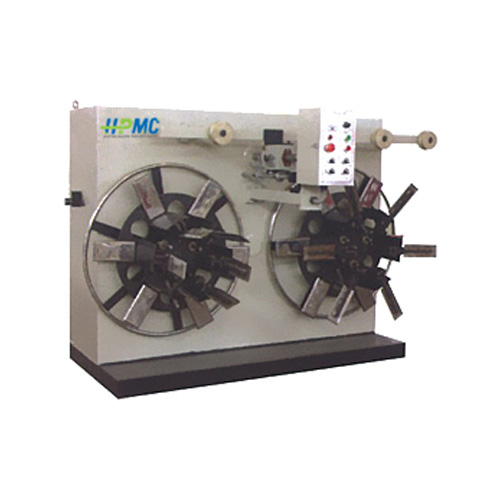

7. Double/Single Station Coiler

Double station coiler can be provided for diameter up to 63mm.
Single station coiler can be provided for diameter up to 110mm.

Technical Specifications:

MACHINE MODELS	HPMC 45G	HPMC 60G	HPMC 75G	HPMC 90G

Min Pipe OD ( mm)	20	20	63	315
Max Pipe OD (mm)	110	200	250	630
Max Plasticizing Capacity (Kg/hr)	150	200	350 - 400	550 - 600
Max Output (Kg/hr)	140	180 - 200	350	550
Main Drive (Kw)	37	55	110	175

Heating
Barrel ( Kw)	8	12	20	28
Die ( Kw)	4	5	15	22
Screw Speed Variation (RPM)	30 - 120	30 - 120	30 - 120	30 - 120

Vaccum Sizing Tank
Pump Drive ( KW)	2.25	2.25	2.25*2	7.5*2
Length ( Mtrs)	6.0	6.0	6.0	6.0 + 6.0
Water Requirement Circulating ( Ltrs/mm)	450	450	600	1200

Spray Bath
Length ( mtrs)	6	6.0	6.0*2	6.0*3
Water Circulating Requirement ( Ltrs/mm)	450	450	1000	1500

Haul Off
Drive Range (KW)	3.7	3.7	5.5	7.5
No. of Arms Option 1	2	2	3	-
No. of Arms Option 2	-	-	4	6

Cutting Saw
Saw Diameter ( mm)	400	500	200	200
Saw Drive Load ( KW)	0.75	1.5	3	5.5
