High Speed Two Layer Cable Plant

We manufacture and export plastic processing machinery like Plastic Extruder, Twin Screw Extruder, PVC Pipe Plant, Pipe Extruder, HDPE Pipe Plant, Recycling machine, Plastic Reprocessing Plant, Co-Rotating Extruder, Drip Irrigation, Compounding Extruder, Pipe Machinery, PVC Casing Caping Machinery, Plastic Profile Machinery, LLDPE Pipe Plant and all kinds of Extrusion Machinery and Plastic Machinery.

Extruder Specifications :

MODEL MOTOR LOAD MAX RPM L/D RATION HEATING POWER (KW) PROD.KG./HR(PVC) PROD.KG./HR(XLPE)

45/30 10/5 70/70 26/26 10/5 60 -
45/45 10/10 70/70 26/26 10/10 80 50
65/45 20/10 70/70 26/26 12/10 120 85
100/65 40/20 60/70 26/26 22/12 280 200
Get an Instant Quote

Sections of High Speed Two Layer Cable Plant

Two Layer DIE HEAD

Double Pass Type Cooling Unit

  • Stainless Steel construction
  • Cable is repeatly wrapped around the deflection pulley
  • Water flow controlled by manually adjusted valves
Two Layer DIE HEAD

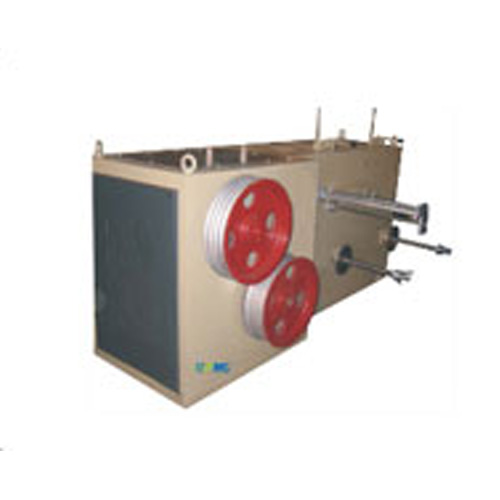

Capstan

  • Efficient transmission of the tractive forces
  • Smooth transmission force
  • Essential for the best possible production
  • Cable diameter ranges from 10 mm to 50 mm.

Capstan

Technical Specifications:

  HC400 HC 630 HC 800 HC 1000

Wheel Dia 400 630 800 1000
Max. Traction Force (Kg.) 200 500 800 1000
Max. Dia of cable (mm) 10 20 30 40
Max speed (m/min) 400 250 150 80
AC Drive (HP) 2 3 5 75

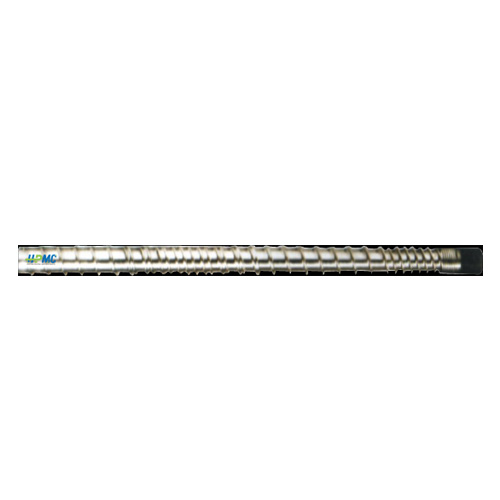

Screw Design

  • Barrier design of Screw gives homogeneous mixing
  • Groove design of barrel gives high output
  • HPMC Extruder give high output value with excellent linearity. Extruders are fitted with powerful air blowers with jackets for perfect temperature control
  • Efficient production over a wide product range.
  • Excellent result for insulation grade PVC, Sheathing grade PVC, XLPE, LDPE, FRLS and Nylon.
Screw Design

Technical Specifications:

MODEL MOTOR LOAD (HP) MAX RPM L/D RATIO HEATING POWER (KW) PROD.KG./HR (PVC) PROD.KG./HR (XLPE)

HPMC30 5 70 26 5 20 -
HPMC45 10 70 26 10 40 25
HPMC65 20 70 26 12 80 60
HPMC75 30 70 26 16 120 90
HPMC90 40 60 26 20 150 115
HPMC100 40 60 26 22 200 140
HPMC120 60 60 26 30 350 250

Cross-Head

  • Fixed center or Die center
Cross-Head

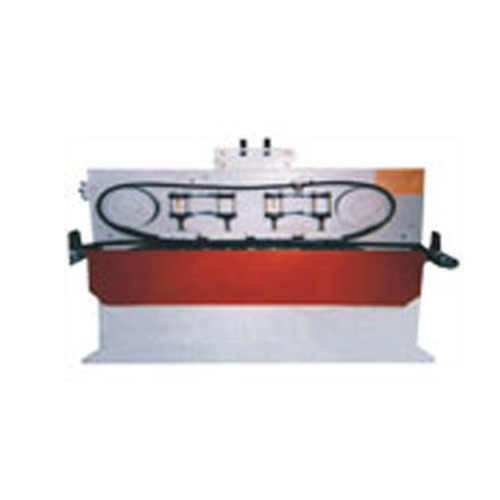

Haul-off Caterpillar

  • Pneumatically operated
  • Irregularities can easily pass through
  • Perfectly synchronized with the main extruder.
Haul-off Caterpillar

Technical Specifications:

  CAT-4 CAT-8 CAT-12 CAT-16 CAT-20

Max Line Speed 200 160 125 100 80
Max Traction Force 400 800 1200 1600 2000
Max Cable Opening 60 100 120 160 160
Gripping Length 900 1200 1500 1800 2100
Width of Belt 80 100 120 160 160
Drive ( HP) 3 5 7.5 10 15
