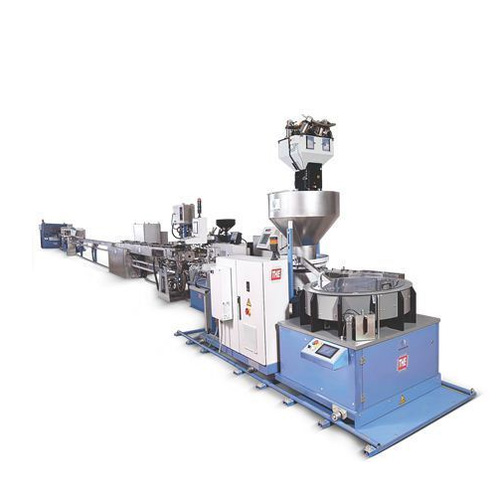

Inline Flat Drip Pipe Extruder Plant offeredfeatures PLC 10.3" touch panel for easy controlling of the operations and providing for maximum line speed of 90 mtrs/min. Further, the high precision servo motor allows optimum control of dripper insertion. Some of the other standard features of these plants include automatic centrifugal screening of dripper before insertion, stainless steel based vacuum tank in 6 meters length, providing for accurate drilling support, servo motor based drive to both the haul-offs, two station coiling in synchronization with the line, automatic coiling machine for changing of coils, providing for high line speed of 120 mts/min and others.
| Extruder/kw/kg/hr | 75 mm/55kw/150-200 kr/hr |
| Line speed | 30-90 mts/min |
| Cylindrical drippers maximum | 300/min/servo controlled complete line controlled by -10.3" PVC touch panel |
| Transmission speed selection | |
| Emitter spacing | 20cm above set arbitrary (Variable pitch settings) |
| Tractor speed | 10-120m/min |
| Drilling Speed | 250/min |
| Line Length | 38m |
| Line width | 3m |
| Rated Power | 90kw |
| Vacuum Tank | 5 mtrs (Stainless Steel) |
| Water tank | 6*2 mtrs (Stainless Steel) |
| Dripper insertion | Servo controlled |
| Dripper gluing | Servo controlled |
| 1st and 2nd Haul – off | Servo controlled |
| Drilling | Servo controlled |
| Coiler | Automatic coil change |
