Soft Cable Grade PVC Compounding Plant

Product Description:

SINGLE SCREW PLANT FOR SOFT GARDEN PIPE

Application of Co-rotating Twin Screw Extruder:

  • Plastic and polymer application
  • Direct compounding.
  • PVC soft cable grade compounding
  • lnline compounding
  • Compression and injection molding
  • Film and sheet extrusion
  • In production of master batches, natural and wood fibre composites, plastic alloys,etc
  • Recycling
Get an Instant Quote

Features of Co-rotating Twin-screw Extruder:

Homogeneity, plasticization, filling modification, enhancement, recovery and granulation:

  • The newly designed torque distribution system,high-precision grinding of hardened gear teeth,and the interlocking of lubrication system are among the reasons for the good reliability of gear box
  • Both screws and barrels are designed using the building block principle. The screw configuration, barrel setup, screw UD, the number and protocol of feeding and venting, screen change, way of granulating, and the electric control mode are optimally adjusted according to different material properties and process requirements,in consideration of the machine's versatility in other general applications
  • Matched with single screw feeder or twin screw feeder; feeding smoothly and ensures easy operation
  • It is provided with die face cutter and vibratory sieve

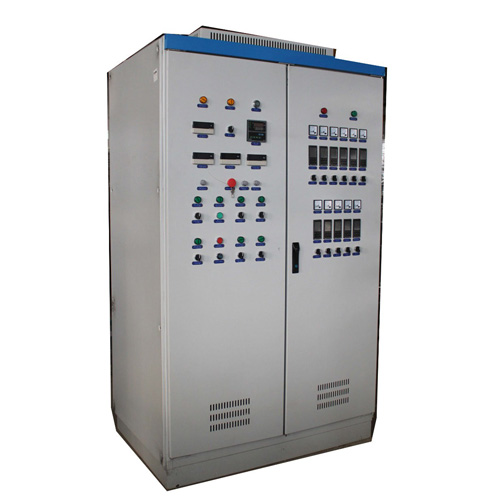

Features of Co-rotating Twin-screw Extruder

Technical Specifications:

MODEL 20 30 35 50 65 72 92

  Screw Diameter(mm)  21.7 30 35.6 50.5  62.4 71.2  91
Rotary Speed (RPM) Max     600   400   600   500/600   400/500   400/500   400/500
  Main Motor Power (kw)     4   11   11/15   37/45   55/75   90/110  220/250
  L/D     32-40   28-48   32-48   32-48   32-48   32-48   32-40
  Capacity (kg/h)     2-10   5-30   10-80   20-150   100-300   300-600   600-1000
Get an Instant Quote

For Filler /Masterbatch/compounding & recycling
