Twin Screw Plant For CPVC Pipe

Product Description:

We manufacture and export plastic processing machinery like Plastic Extruder, Twin Screw Extruder, PVC Pipe Plant, Pipe Extruder, HDPE Pipe Plant, Recycling machine, Plastic Reprocessing Plant, Co-Rotating Extruder, Drip Irrigation, Compounding Extruder, Pipe Machinery, PVC Casing Caping Machinery, Plastic Profile Machinery, LLDPE Pipe Plant and all kinds of Extrusion Machinery and Plastic Machinery.

Get an Instant Quote

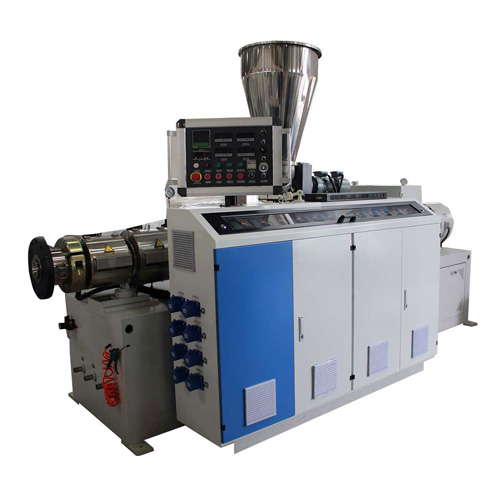

1. CPVC Conical Twin Screw Extruder

Die head for smaller sizes of pipe varies between 16mm - 50 mm providing d with stainless steel spider.
Die head for bigger sizes of pipe varies between 40mm - 160mm equipped with stainless steel spider.

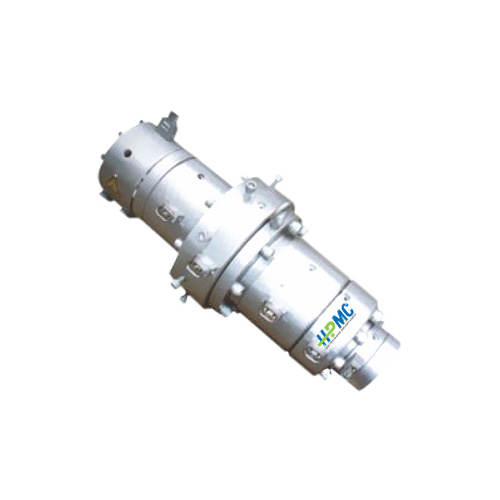

2. Die Head

Die Head is made of high carbon content forged alloy steel for better life and performance.

3. Spray Bath

Intensive cooling of the pipe with the help of numbers of spray nozzles.
Axial adjustment of tank on slide rails with locking arrangement.
Self cleaning type spray nozzles with wide opening for intensive cooling of the pipe.
Aerclyic transparent cover for easy inspection.

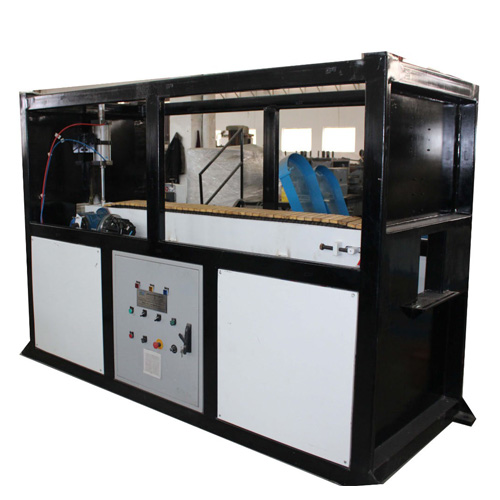

4. Pneuamtic Haul Off

Twin and Multi Track system
Track can be adjusted for different sizez of pipes 20mm to 315 mm
Haul-off is synchronized with extruder with the help of AC Frequency Variable Drive.
Gap between two tracks and pressure is adjusted pneumatically.
V-Groove rubber pads mounted on chain with proper tensioning to prevent ovality even for large diameter and thin wall pipe.

5. Planetary Cuttings Saw

Planetary saw blade cutting for pipe dia upto 315 mm
UPVC chamefering rotary cutting.
Cutting is PLC controlled.
Saw dust powder sucking device.
Special hard alloy saw blade employed to cut heavy caliber thick wall pipes.

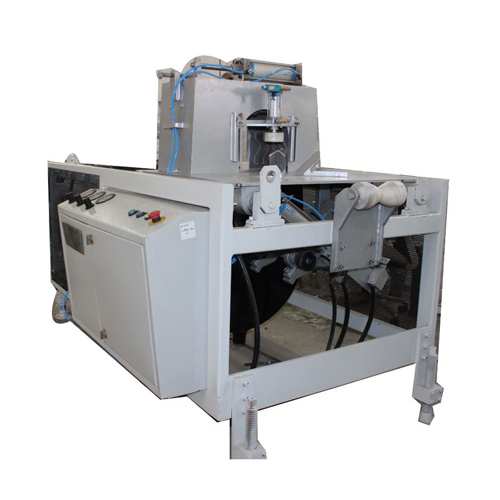

6. Automatic Cutting Unit Upto 200 MM

Carborundum cutter for less wastage during cutting.
Smooth and clean cut.
All movement are equipped with pneumatic cylinders.
Clamping force can be adjusted to accomodate different wall thickness.
Limit switch is provided to sense particular length.

7. Tipping Chute

Operated with pnematic cylinder and limit switch for pipe stacking.

Technical Specifications:

MAIN SPECIFICATIONS
CONICAL TWIN SCREW EXTRUDER

MACHINE MODELS	MAX PLASTICIZING CAPACITY (KG/HR)	MAX OUTOUT (KG/HR)	MAIN DRIVE KW	HEATING BARREL (KW)	HEATING DIE(KW)	SCREW SPEED VARIATION (RPM)

HPMC 51/105	180	150	18.5	15	3	1-37
HPMC 65/132	275	250	37	24	3	1-37
HPMC 80/156	400	350	55	35	4	1-37
