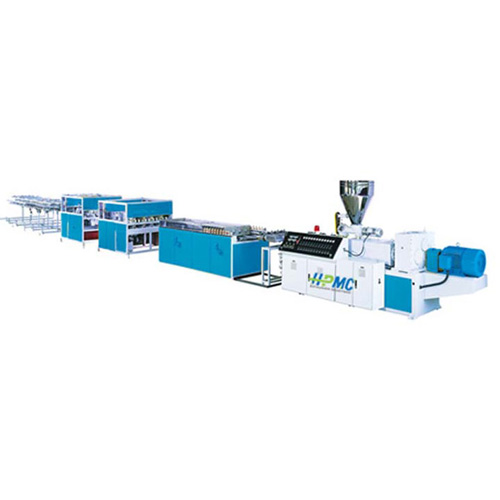

PVC Conduit Pipe Plant (Four Pipes)

Sections of Conical Twin Screw Extruder (Four Pipes)

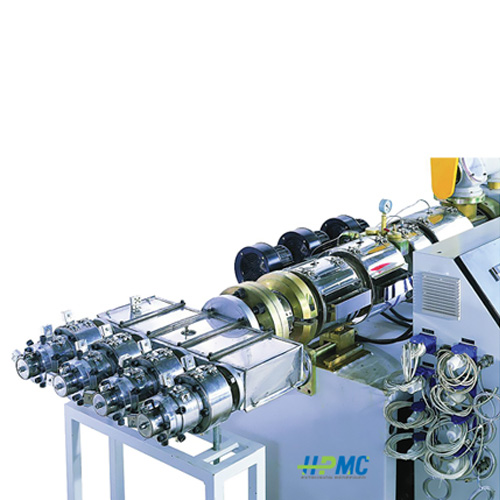

1. Four Pipe Die Head

• Die head for smaller sizes of pipe ranges from 16mm-32mm along with stainless steel spider
• It provides surety of production of four pipes from a single mould keeping the cost of production to be low.
• It is provided with flow channel design and special treatment on the surface.
• Special flow channel provides the equal distribution of PVC in both moulds
• Even temperature and pressure remain even
• Die head for smaller sizes of pipe ranges from 16mm-32mm along with stainless steel spider

2. Four Pipe Die Head

• Four Pipe Vacuum Tank ensures continuity of the production of one pipe, incase production of other pipe is stopped minimizing the wastage. It is formed of stainless steel.
• All vacuum parts are free from each other.

3. Four Pipe Haul Off

• Its manufacturing ensures the traction of two different speeds thus enabling the production of pipes of varying diameters.
• Drive to all four belts is provided through four independent geared motors.
• Space left between two tracks is adjusted by pneumatic cylinders.
• For the easy maintenance rubber pads are mounted on the chain.
• Enabled with chain drive and groove rubber pad to ensure that pipe would not slip away even at higher line speed.

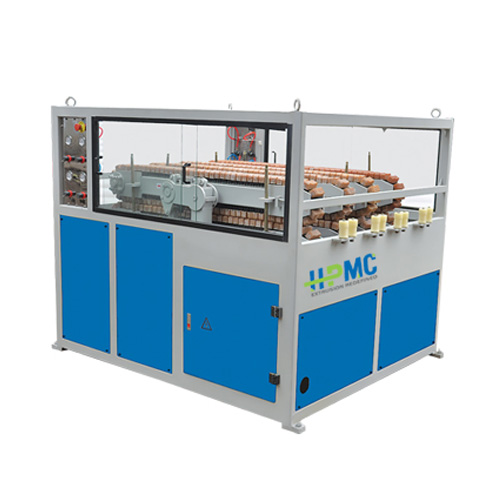

4. Four Pipe Cutting Unit

• Its manufacturing ensures the cutting of two pipes at varying lengths and at different time.
• Length of the pipe can be fixed with limit switch of tipping chute
• PLC Controlled Functioning
• Specialized high sped blade for smooth cutting
